ETI Power Ranger

Product

Hydraulic input oil flow rate	11.0LPM
Output Per Cycle	21.0 cm³
Pressure Ratio	10:1
Pump Output per minute	319.5 cm³
Capacity	100kg, 200kg, Up to 400kg

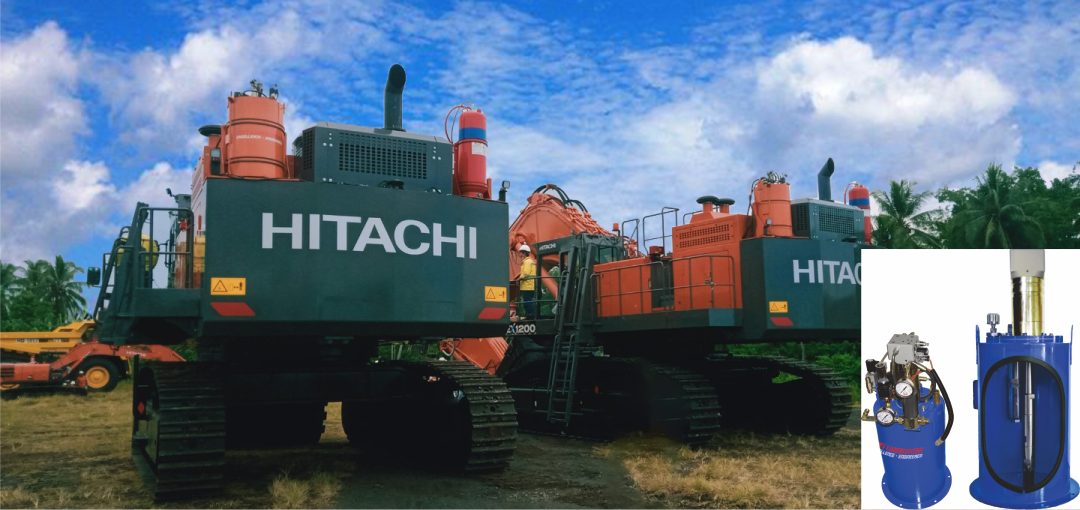

HYDRAULIC GREASE AUTOMATIC LUBE, the same as Power Chief, uses an injector as a grease distributor. Equipped with a controller as well as hose fittings. This product is suitable for heavy equipment that requires far more grease consumption than other pumps. Capacity starting from 100 kg, 200 kg and custom sizes.

General Specification

Hydraulic input oil pressure	20 - 200 Bar
Output Pressure	300 Bar
Operating Voltage	24 VDC
Operating Temperature	-10°C to +70°C
Maximum Oil temperature	90° C
Hydraulic Inlet Port	7/16” JIC
Hydraulic Tank Return Port	9/16” JIC
Pump Outlet	1/4" BSP
Oil Pressure Setting	41 bar (600 psi)
Maximum Cycle Rate	60 CPM
