ETI Power Chief

Product

Hydraulic input oil flow rate	0.25 – 3.0 LPM
Output Per Cycle	10.0 cm³
Pressure Ratio	16:1
Pump Output per Minute	150 cm³
Capacity	15kg, 25kg, 40kg, 60kg, 100kg

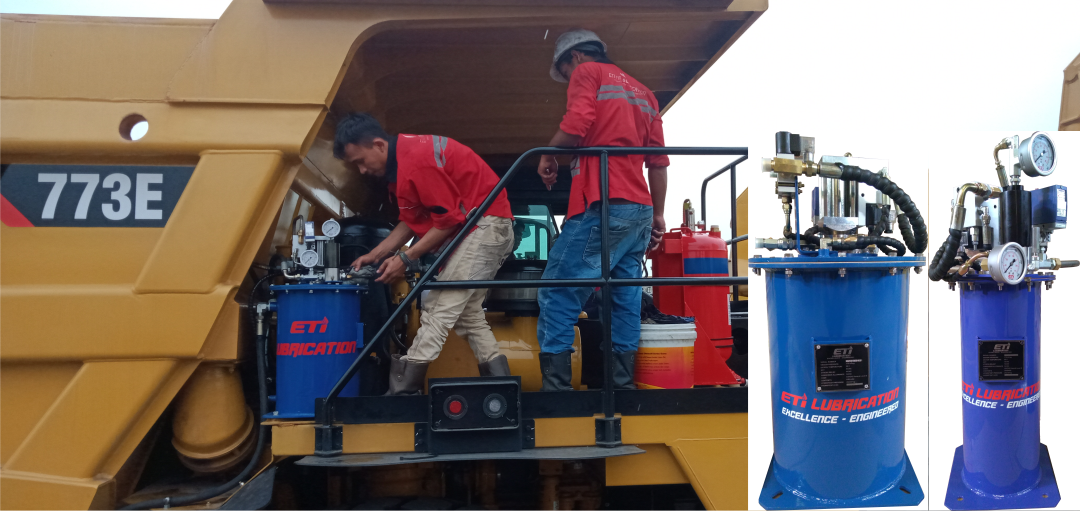

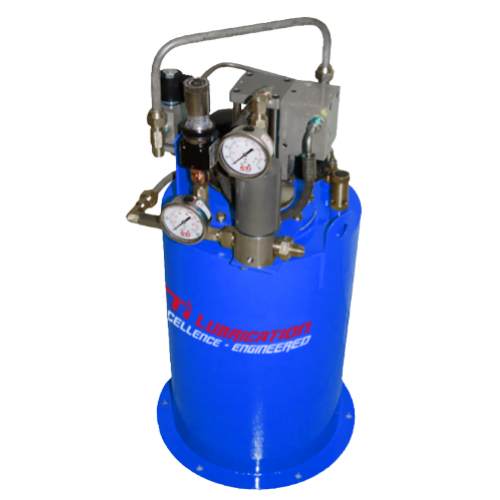

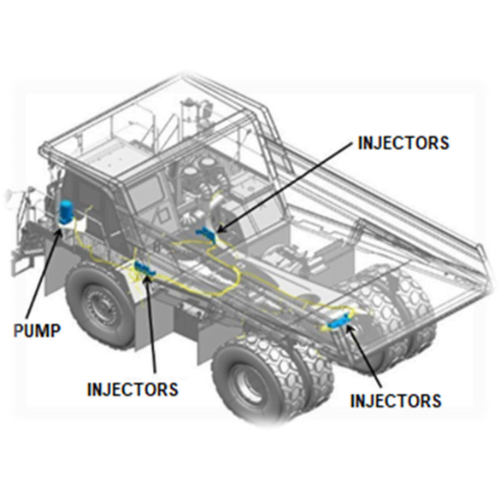

HYDRUALIC GREASE AUTOMATIC LUBE, an automatic grease lubricating tool with an injector as a grease distributor. Equipped with a controller as well as a hose fitting. This product is suitable for heavy equipment that is generally used in various industries. Capacity starts from 16 kg, 25 kg, 40 kg, 60 kg, 100 kg.

General Specification

Hydraulic input oil pressure	20 - 200 Bar
Output Pressure	300 Bar
Operating Voltage	24 VDC
Operating Temperature	-10°C to +70°C
Maximum Oil temperature	90° C
Hydraulic Inlet Port	7/16” JIC
Hydraulic Tank Return Port	9/16” JIC
Pump Outlet	1/4" BSP
Oil Pressure Setting	41 bar (600 psi)
Maximum Cycle Rate	60 CPM
