ETI FOAM WATER SPRAY FIRE SUPPRESSION SYSTEM
ETI is proud to introduce its Fully-engineered Fire Suppression System. Based on the
combined extensive product experience of the most experienced people in the industry.
|
Typical
Applications |
|
 |
|
Surface & Underground Mining Equipment:
Draglines, Haul Trucks, Dozers, Shovels |
|
|
|
Construction
Equipment:Bulldozers, Excavators, Graders, Generators,Compressors |
|
|
Forestry & Agricultural
Equipment:Loggers, Loaders, Tractors, Harvesters |
|
|
Aircraft Support Vehicles:Aircraft Tugs |
|
|
Industrial & Transport Equipment Oil Platforms, Boats, Marine Forklifts, Machines, Prime Movers, Locomotives |
|
|
Why use it? |
|
|
|
Off-road vehicles typically work long hours under demanding conditions. The size of these machines means in many cases the operator may not be aware of a fire until it is well advanced and the use of portable fire extinguishers are in most cases too small and not adequate for large engine fires.
The use of an ETI Foam Fire Suppression System with automatic detection and actuation ensures that the fire is detected and extinguished early. It has the ability of alerting the operator and shutting down the engine. |
|
Why use foam? |
| |
|
|
The use of foam avoids powder compaction problems that are associated with Dry Chemical Powder Systems when subjected to vibration, which can render the system inoperable. |
| |
|
|
Foam provides cooling of hot components and reduces the chance of re-ignition. |
| |
|
|
Foam is able to cover fuel spills which may occur under the vehicle or equipment. |
| |
|
|
Dry Powder creates induced risks with respiration and escape visibility. |
|
|
System
Design and Product Quality |
| |
All system design and installation is carried out by trained qualified personnel. Every system design begins with a through risk assessment of the equipment to be protected. This ensures that all fuel and ignition sources are identified and assessed for protection.
ETI Foam Fire Suppression Systems are designed and manufactured to meet the highest standards demanded in the mining industry. |
|
|
 |
|
|
Product Specifications |

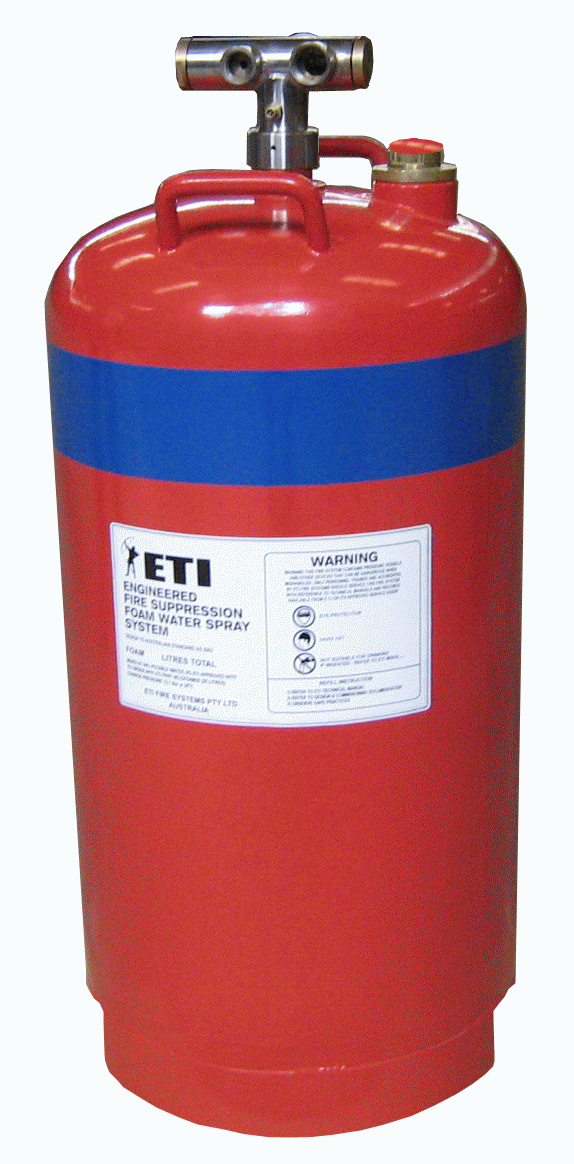

| Cylinder Assemblies |
|
|
Heavy Duty Systems - Dual (R.O.P/L.O.P) Actuators |
|
|
Light vehicle systems |
|
|
Cylinders have
reinforced neck rings |
|
|
Stainless steel valve |
|
|
Cylinders baked enamel finish, signal red |
|
|
Flexible siphon tubes for vertical or horizontal mounting of cylinders |
|
|
Rise of Pressure and Loss of Pressure can be used together on the same application to maximise safety and efficiency |
|
|
Surface & Underground Mining Equipment:
Excavators, Haul Trucks, Dozers, Shovels |
|
|
|
Single, double or triple Nozzle Kits fitted with Blow-Off Brass Caps to prevent blockage. |
|
|
|
Specially designed and engineered nozzles to suit application |
|
|
Stainless steel discharge tubing |
|
|
Flame resistant steel braided supply hoses |
|

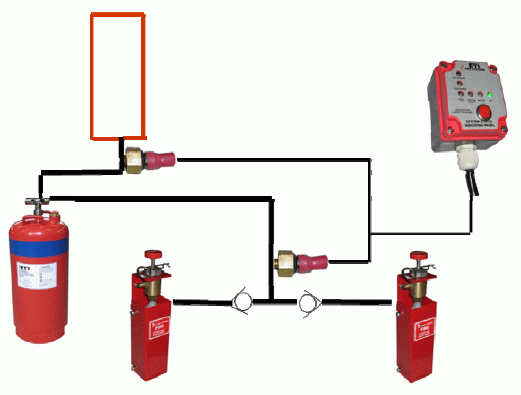

| Automatic Actuation System |
|
|
|
Stainless Steel Detectors for automatic actuation |
|
|
|
|
Solid stainless steel Manual Actuators for remote activation of system |
|
|
Stainless steel discharge tubing |
|
|
Electric Actuation available in 12vDC or 24vDC |
|
|
Automatic engine shutdown ( optional) |
|
|
|
|
|
|
|
|
|
